Housing |
Cylindrical Threaded Type |
|
Mounting |
Non-Flush |
|
Dimensions (mm)) |
M18 / L = 80 |
|
Thread Size |
M18x1 |
|
Material |
Housing: Nickel Plated Brass |
|
Sensing Face: PBT |

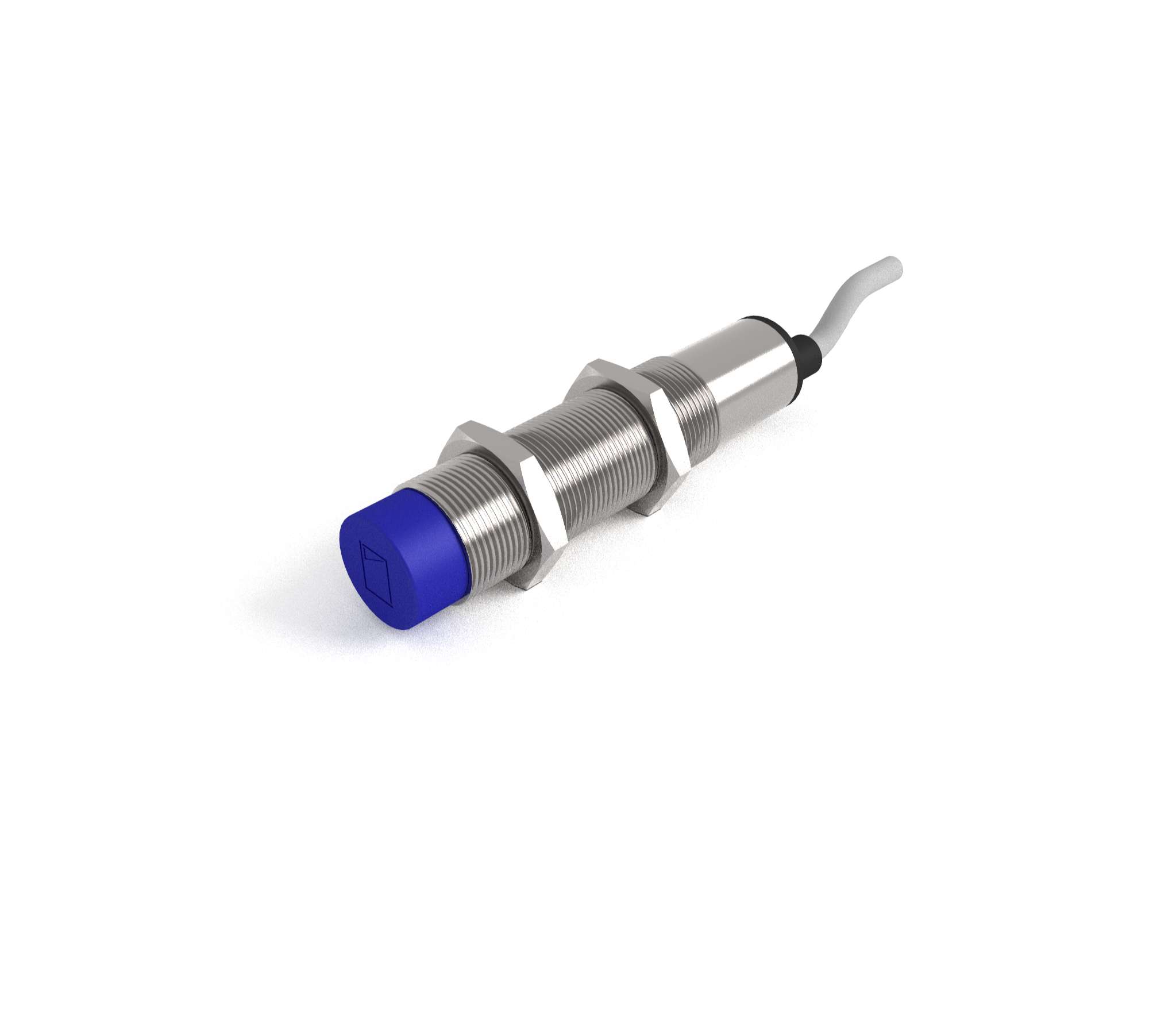

A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA)
- Housing Size:M18x1
- Sensing Range:8mm
- Switching Function:NC
- Type: AC, 2 Wire
- Mounting Style:Non-Flush
|
Operating voltage (VAC) |
40 … 250 |
|
Supply Frequency (Hz) |
50 |
|
Current consumption (mA) |
≤10 |
|
Output function |
Normally Closed |
|
Max. voltage drop (V) |
6 |
|
Max. Load Current (On state) |
200 |
|
Switching frequency (Hz) |
25 |
Additional information
| Product Group | |
|---|---|
| Input Supply Type | |
| Housing Size | |
| Mounting Style | |
| Sensing Range | |
| Output Circuit | |
| Switching Function | |
| Housing Material | |
| Protection Rating min | |
| Electrical Connection Type |
Related products
Frequently asked questions about A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA)
What is the sensing range of A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA)?
The rated sensing range of A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is 8mm. Allow for the standard reduction factor when the target is not mild steel.
What housing size does A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) use?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) uses a 18 mm (Threaded Sleeve) housing.
What is the housing of A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) made from?
The housing of A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is Nickel Plated Brass.
Is A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) normally open or normally closed?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) has a AC NC switching function.
What output circuit does A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) use?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) uses a AC 2 Wire output circuit.
What supply does A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) need?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is a AC device.
How is A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) connected?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is supplied with a Cable connection.
Can A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) be flush mounted?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is designed for Non-Flush mounting.
What is the IP rating of A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA)?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is rated to ≥ IP67.
Is A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) available in India?
A20C-1808-B-2 (IPS_AC_M18_8mm_NC_2Wire_200mA) is manufactured by Accent Controls in Mumbai. Call +91 98673 64004 or email info@accentsensors.com for availability, pricing and lead time.
