Housing |
Cylindrical Threaded Type |
|
Mounting |
Flush |
|
Dimensions (mm)) |
M8 / L = 60 |
|
Thread Size |
M8x1 |
|
Material |
Housing: Nickel Plated Brass |
|
Sensing Face: PBT |

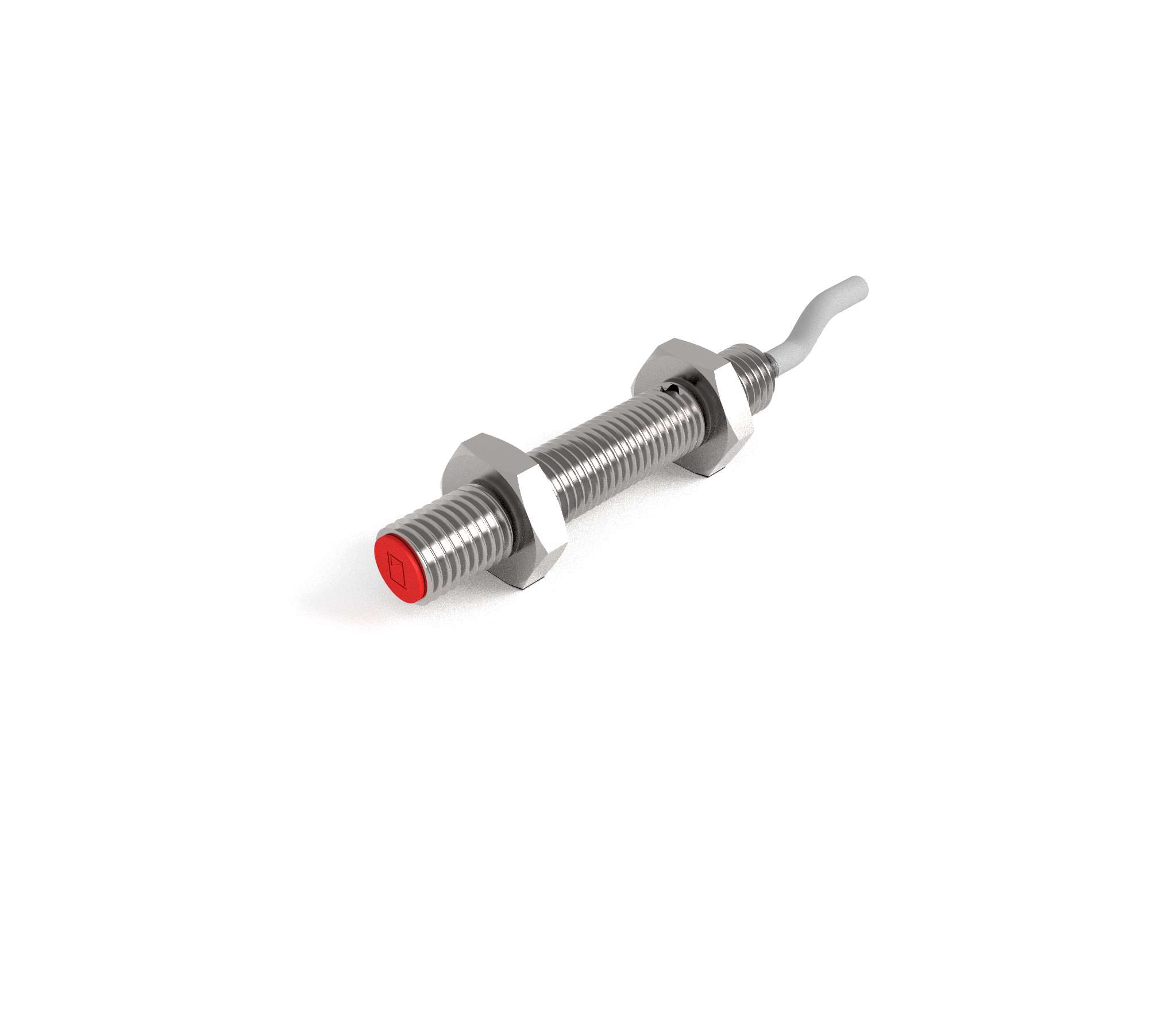

D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA)
- Housing Size: M8x1
- Sensing Range: 1mm
- Output Circuit: NPN, NO
- Type: DC, 3 Wire
- Mounting Style:Flush
|
Operating voltage (VDC) |
10 … 30 |
|
Current consumption (mA) |
≤13 |
|
Electrical design |
NPN |
|
Output function |
NO |
|
Max. voltage drop (V) |
1.4 |
|
Load Current Rating (mA) |
≤200 |
|
Switching frequency (Hz) |
5000 |
|
Protection class |
III |
|
Reverse polarity Protection |
Yes |
Additional information
| Product Group | |
|---|---|
| Input Supply Type | |
| Housing Size | |
| Mounting Style | |
| Sensing Range | |
| Output Circuit | |
| Switching Function | |
| Housing Material | |
| Protection | |
| Protection Rating min | |
| Electrical Connection Type |
Related products
Frequently asked questions about D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA)
What is the sensing range of D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA)?
The rated sensing range of D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is 1mm. Allow for the standard reduction factor when the target is not mild steel.
What housing size does D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) use?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) uses a 8 mm (Threaded Sleeve) housing.
What is the housing of D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) made from?
The housing of D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is Nickel Plated Brass.
Is D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) normally open or normally closed?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) has a NPN NO switching function.
What output circuit does D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) use?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) uses a DC 3 Wire output circuit.
What supply does D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) need?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is a DC device.
How is D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) connected?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is supplied with a Cable connection.
Can D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) be flush mounted?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is designed for Flush mounting.
What is the IP rating of D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA)?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is rated to ≥ IP67.
Is D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) available in India?
D30C-0801-NM-2 (IPS_M8_1mm_NPN NO_3Wire_200mA) is manufactured by Accent Controls in Mumbai. Call +91 98673 64004 or email info@accentsensors.com for availability, pricing and lead time.
