| Environmental Protection | IP40 |
| Housing Type | DIN Rail / Panel Mount |
| Housing Dimensions | 60 x 70 x 111 mm |
| Mounting | DIN Rail 35mm / Screw Fitting |
| Housing Material | ABS |
| Operating Temperature range | 0 to 60⁰ C |
| Insulation | >100 meg. ohms at 500V DC |

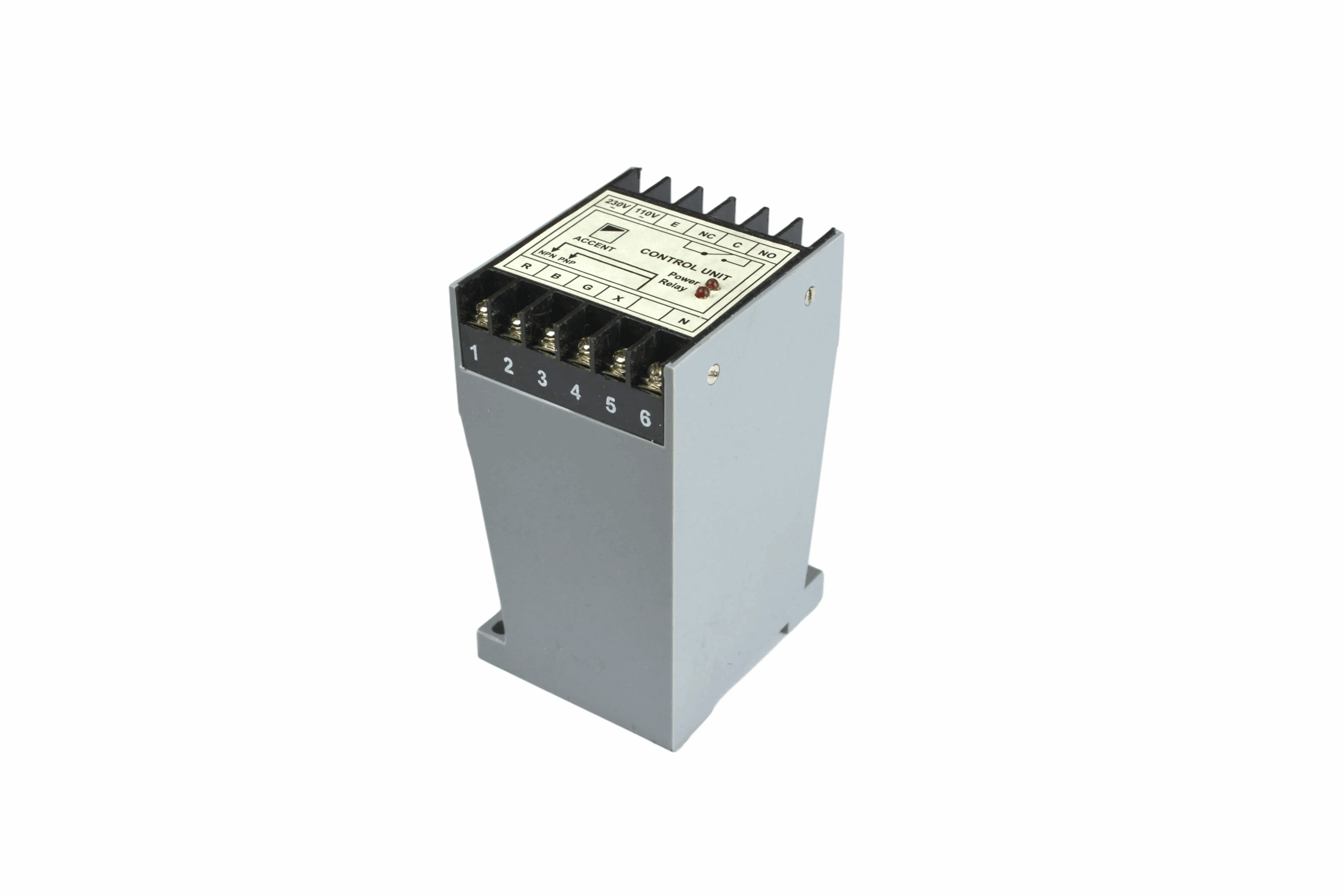

Standard Proximity Control Unit
This Control Unit is designed to provide a regulated power supply to proximity switches or sensors and to utilize their output signals to operate its inbuilt relay or opto-coupler. The output from the relay or opto-coupler can then be used to control the intended process or for signaling purposes.
| Power Supply | 110 Vac / 230 VAC; 50Hz |
| Terminals | 6+6 Nos; Slotted |
| Short circuit Protection | Internal Fuse – 100mA |
| Power supply for Sensor | 24 VDC; 100mA |
| Sensor O/P type compatibility | PNP / NPN |
| Indicators | Power & Relay status |
| Relay Contact arrangement | SPDT, Form C |
| Relay Contact Rating | 230 VAC/24 VDC; 6A |
| Relay switching speed | 12 mS |
| Min Relay Life Expectancy | 1 Lakh operations at rated load |
| Opto-Coupled O/P (in lieu of relay) | YES – optional on request |
Related products
Frequently asked questions about Standard Proximity Control Unit
Is Standard Proximity Control Unit available in India?
Standard Proximity Control Unit is manufactured by Accent Controls in Mumbai. Call +91 98673 64004 or email info@accentsensors.com for availability, pricing and lead time.
