Housing |
Cylindrical Threaded Type |
|
Mounting: |
Flush |
|
Dimensions (mm)) |
M30 / L = 80 |
|
Thread Size |
M30x1.5 |
|
Material |
Housing: Nickel Plated Brass |
|
Sensing Face: PBT |

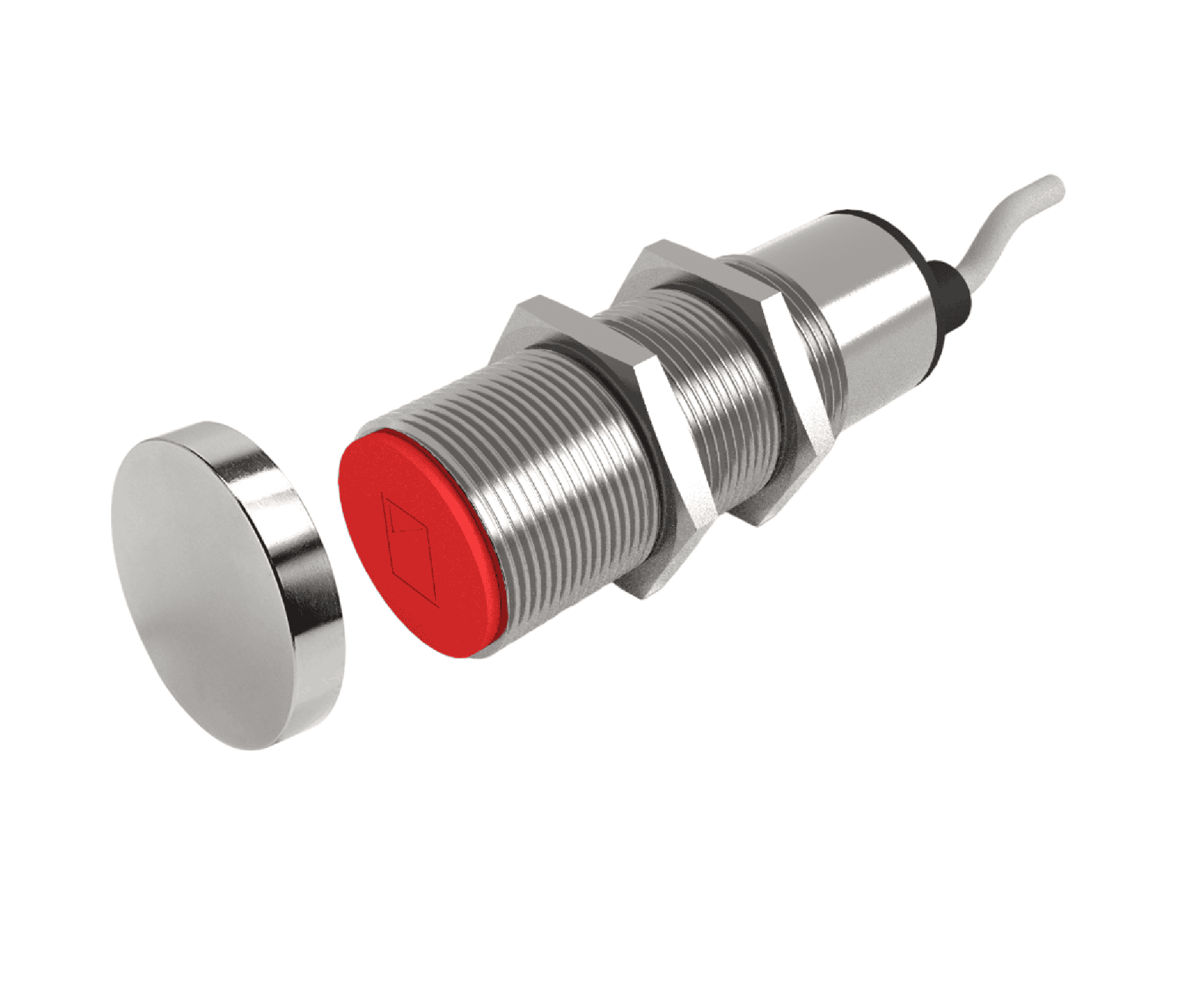

D33C-30MD-NM-3S (IPS_M30_NPN NO_3Wire_30mA_SCP)
- Housing Size: M30x1.5
- Sensing Range: Magnet Dependent
- Output Circuit:NPN, NO
- Type: DC, 3 Wire
- Mounting Style: Flush
|
Operating voltage (VDC) |
10 … 30 |
|
Current consumption (mA) |
≤3 |
|
Electrical design |
NPN |
|
Output function |
NO |
|
Load Current Rating (mA) |
≤30 |
|
Switching frequency (Hz) |
10000 |
|
Reverse polarity Protection |
Yes |
|
Short-circuit protection |
Yes |
Additional information
| Product Group | |
|---|---|
| Input Supply Type | |
| Housing Size | |
| Mounting Style | |
| Sensing Range | |
| Output Circuit | |
| Switching Function | |
| Housing Material | |
| Protection | |
| Protection Rating min | |
| Electrical Connection Type |
