Housing |
Cylindrical Threaded Type |
|
Mounting |
Flush |
|
Dimensions (mm)) |
M30 / L = 80 |
|
Thread Size |
M30x1 |
|
Material |
Housing: Nickel Plated Brass |
|
Sensing Face: PBT |

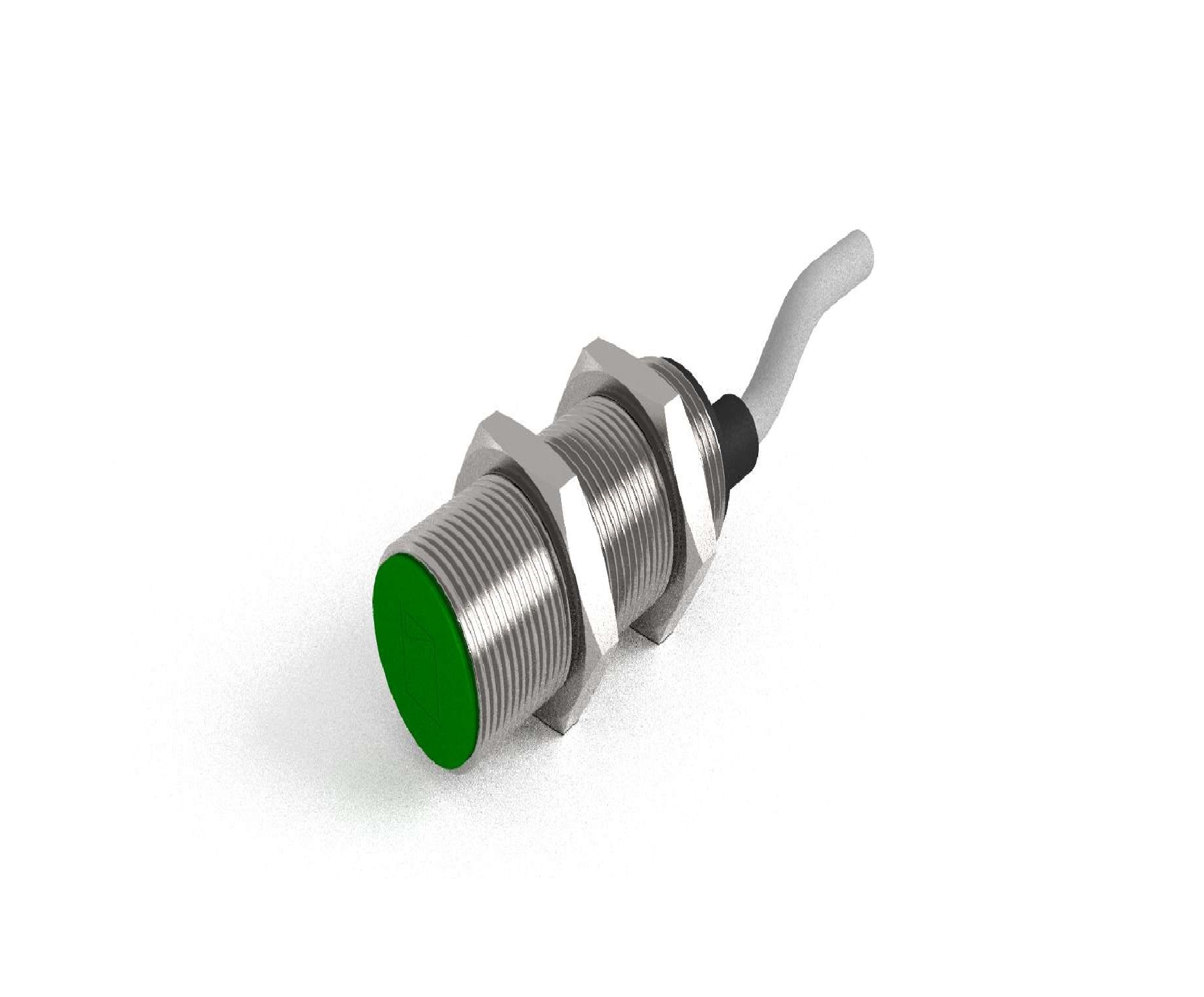

D20C-3010-NA (IPS_DC_M30_10mm_Namur)
- Housing Size:M30x1
- Sensing Range:10mm
- Switching Function:NC
- Type:Namur, 2 Wire
- Mounting Style:Flush
|
Operating voltage (VDC) |
7.7-9 |
|
Nominal Voltage (VDC) |
8.2 |
|
Self-capacitance of sensor |
<30 nF |
|
Output Current (undamped/No Target) |
>3mA |
|
Output Current (damped/Target present) |
1mA |
|
Switching function |
Normally Closed |
|
Hysteresis (%) |
15of Sn |
|
Switching frequency (Hz) |
1000 |
|
Standard Compliance |
IS 5780-1980 NAMUR DIN 19234 |
Additional information
| Product Group | |
|---|---|
| Input Supply Type | |
| Housing Size | |
| Mounting Style | |
| Sensing Range | |
| Output Circuit | |
| Switching Function | |
| Housing Material | |
| Protection Rating min | |
| Electrical Connection Type |
